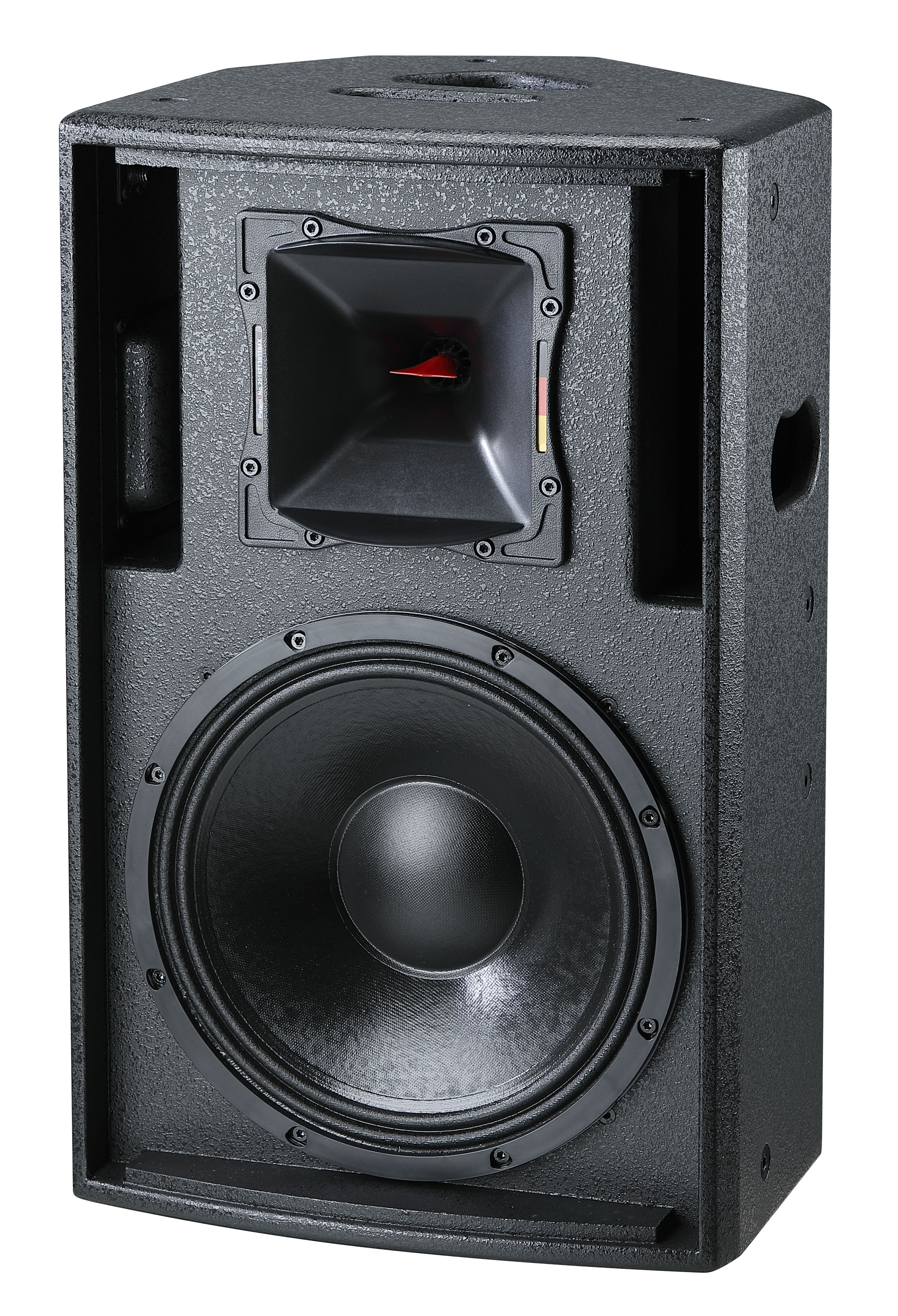

Galax12:Phase control line matrix with karst horn
- Compact multifunctional two frequency division system
- Multilayer Baltic Wood plywood box
- Patented karst horn capable of rotating 80°X60°
- Three year warranty
- Various installation and hanging methods
|
Application:
- Music bar sound reinforcement system
- Stage monitoring or return system
- Complementary sound of large professional sound reinforcement
- Large and medium-sized multifunctional hall, multimedia system, KTV sound reinforcement place
|
 |
- Phase control line matrix with karst horn
- 1x12 inch UK Sufr Audio customized 75 core super neodymium magnetic speaker
- 1x1 inch throat UK Sufr Audio custom 44 core compression driver
- Patent No.: 2016110828510；2015201908235
- Modular array structure can achieve high sound pressure output level
- SPL Max: 132dB
- Weight: 28.5kg
- Dispersion: 80°x60°
- Dimensions 686 x352 x393 (HxWxD)
|
